Vunetrix Manual: SNMP Library Sensor

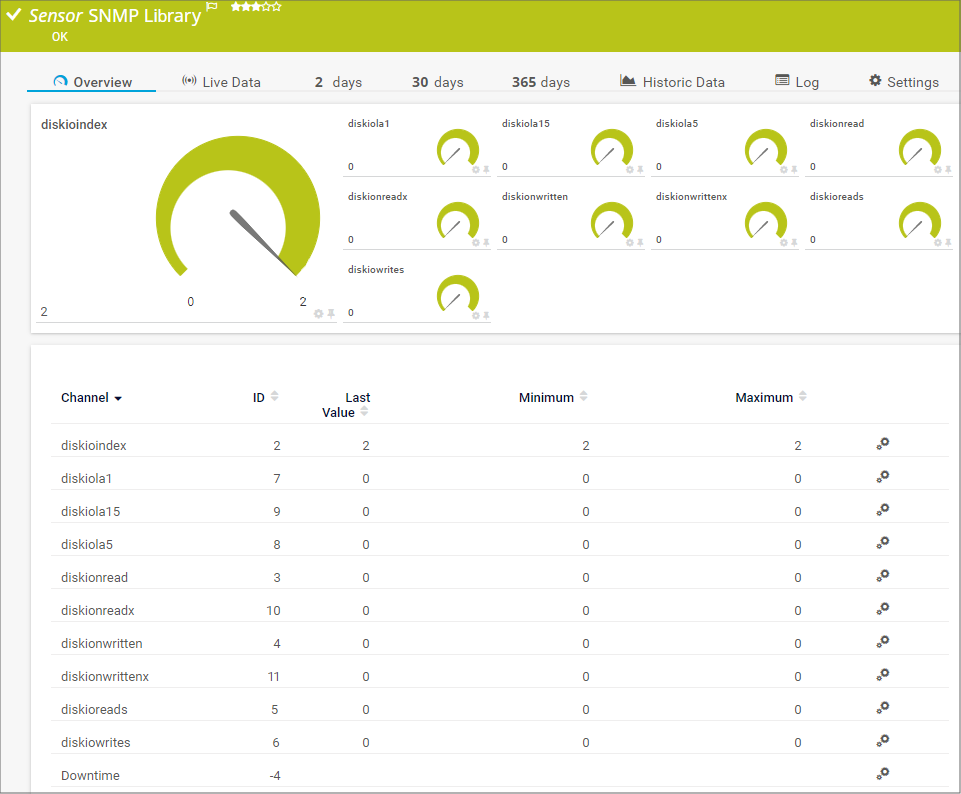

The SNMP Library sensor monitors a device using Simple Network Management Protocol (SNMP) in combination with a compiled Management Information Base (MIB) library file. This provides extended monitoring beyond the standard SNMP sensors of Vunetrix.

In order to monitor any SNMP capable device, you can download the manufacturer's MIB files for these devices, convert them to the Paessler oidlib format, and import them into Vunetrix. To make your monitoring setup as convenient as possible, Vunetrix is delivered with pre-compiled oidlib library files that already contain the Object Identifier (OID) of SNMP counters for the most common devices in a network.

For a general introduction to the technology behind SNMP, please see Monitoring via SNMP section.

Add Sensor

Manually add a new sensor to an SNMP device and from the Add Sensor dialog, select SNMP Library sensor. Vunetrix will show a list of oidlib files available on the system. This contains all library files stored at the \snmplibs sub-directory of your Vunetrix installation directory—both the ones delivered with Vunetrix and your own files. For details about directory paths, please see section Data Storage.

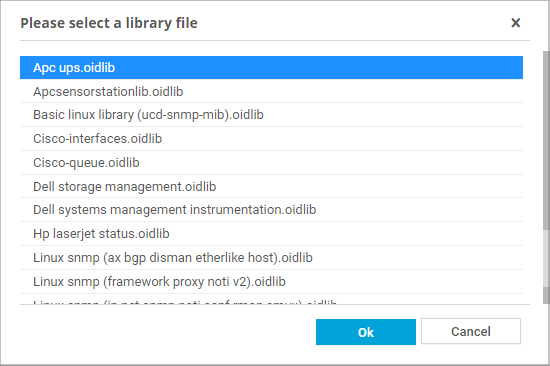

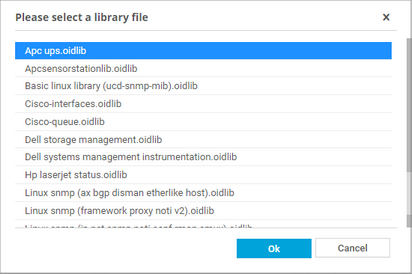

List of SNMP Default Library Files

List of SNMP Default Library Files

The file names in the list indicate the potential purpose. Select a name that appears appropriate for your device and confirm with the OK button. Often, Paessler common oid library.oidlib is a good start. If the file does not fit to your device, this will result in an error message saying that no available interfaces were found on this device. If you see this message, please hit the Go back and retry button and try with another file. If counters were found for your device, you will see the sensor's settings.

Default OIDLIB Files Overview

The following files are delivered with Vunetrix and allow to extend your SNMP monitoring for many devices. Please be aware that not all devices and/or parameters may be supported by the libraries.

  • APC UPS.oidlib
    Can be used to monitor uninterruptible power supplies (UPS) from APC American Power Conversion Corp.
  • Basic Linux Library (UCD-SNMP-MIB).oidlib
    Can be used to monitor basic system parameters on Linux systems, such as memory, disk and swap, CPU, etc.
  • cisco-interfaces.oidlib
    Can be used to monitor Cisco specific parameters.
  • cisco-queue.oidlib
    Can be used to monitor Cisco specific parameters.
  • Dell Storage Management.oidlib
    Can be used to monitor Dell storage devices. Possible parameters include disk arrays, battery and power supply, fan and temperature, virtual disk, etc.
  • Dell Systems Management Instrumentation.oidlib
    Can be used to monitor the hardware of Dell systems. Possible parameters include ACPower and battery, alerts, base board, Bios, BMC, chassis, COO, cooling, event log, firmware, IDE, keyboard, memory, port, network, processor, SCSI, system, temperature, USB, UUID, etc.
  • Linux SNMP (AX BGP DisMan EtherLike Host).oidlib
    Can be used to monitor different aspects of Linux systems. Note: This file can find a very large number of possible interfaces. It may take a few seconds until the selection table is shown.
  • Linux SNMP (Framework Proxy Noti v2).oidlib
    Can be used to monitor different aspects of Linux systems. Note: This file can find a very large number of possible interfaces. It may take a few seconds until the selection table is shown.
  • Linux SNMP (IP Net SNMP Noti OSPF RMON SMUX).oidlib
    Can be used to monitor different aspects of Linux systems. Note: This file can find a very large number of possible interfaces. It may take a few seconds until the selection table is shown.
  • Linux SNMP (Source TCP UCD UDP).oidlib
    Can be used to monitor different aspects of Linux systems. Note: This file can find a very large number of possible interfaces. It may take a few seconds until the selection table is shown.
  • Paessler Common OID Library.oidlib
    Can be used to monitor many common hardware devices.


Import MIB Files

Additionally you can create your own oidlib files by importing your device manufacturers' MIB files, using a the free Paessler MIB Importer. Simply convert your mib files and save the resulting oidlib files to the \snmplibs sub-folder of your Vunetrix program directory. For details about directory paths, please see Data Storage.

SNMP Library Sensor—Add Sensor Settings

The following settings for this sensor differ in the 'Add Sensor' dialog in comparison to the sensor's settings page:

SNMP Library Specific

Library

This shows the path to the oidlib file selected before. Once a sensor is created this value cannot be changed. It is shown for reference purposes only. If you need to change this, please add the sensor anew.

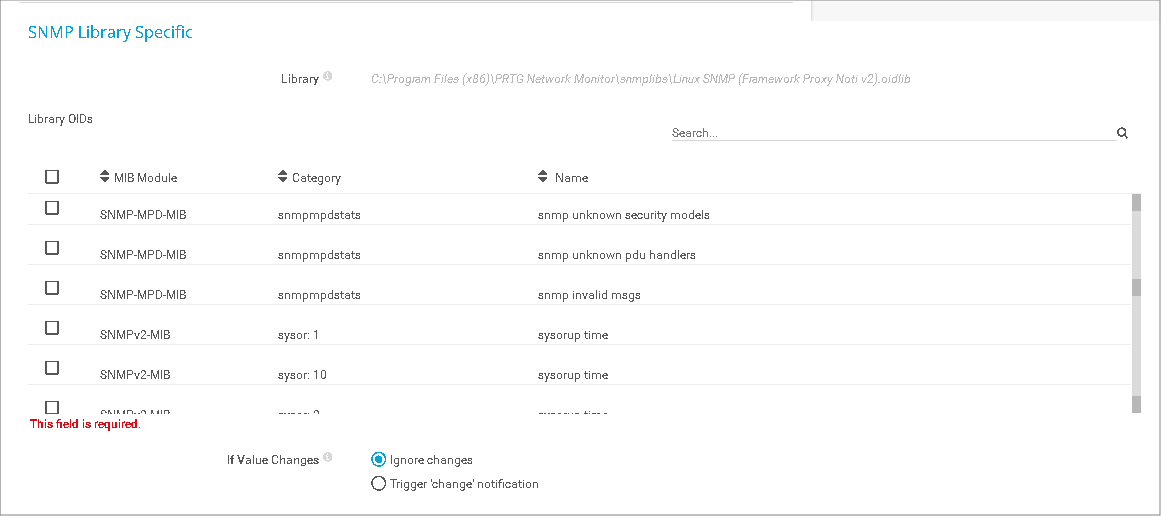

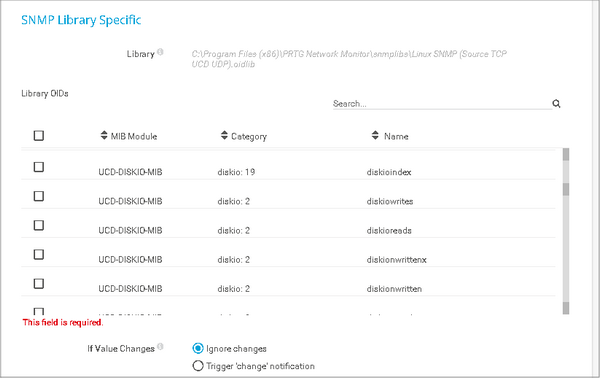

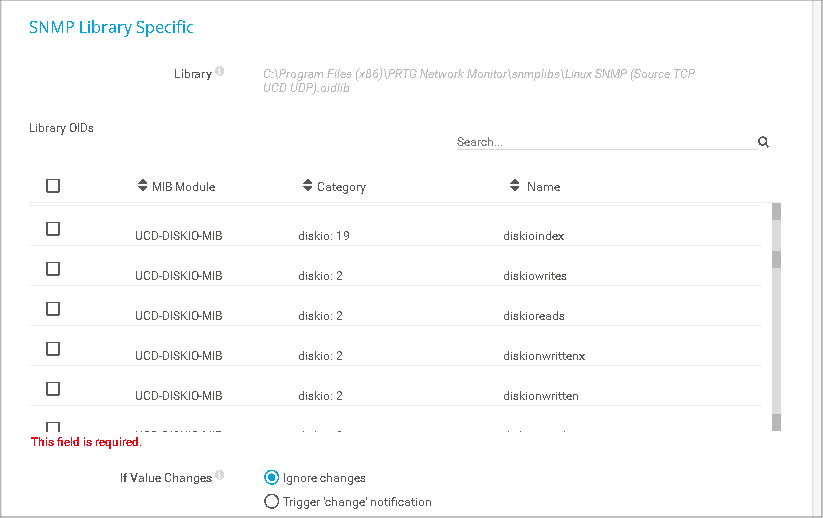

Library-OIDs

Select the aspects of the device you want to monitor. A list specific to your setup is shown. It contains all counters found in the chosen library that match your device. Select one or more items by adding a check mark in front of the respective line. For each selection one sensor will be created when you click the Continue button.

Sensor Settings

On the sensor's details page, click on the Settings tab to change settings.

Note: If not set explicitly in a sensor's settings, it will connect to the IP Address or DNS Name defined in the settings of the parent device the sensor is created on.

Basic Sensor Settings

Sensor Name

Enter a meaningful name to identify the sensor. The name will be shown by default in the device tree and in all alarms.

Tags

Enter one or more tags, separated by space or comma. You can use tags to group sensors and use tag-filtered views later on. Tags are not case sensitive. We recommend using the default value. You can add additional tags to it, if you like. Other tags are automatically inherited from objects further up in the device tree. Those are not visible here.

Priority

Select a priority for the sensor. This setting determines where the sensor will be placed in sensor lists. Top priority will be at the top of a list. You can choose from one star (low priority) to five stars (top priority).

SNMP Library Specific

Selected Interface

Shows the interface monitored by this sensor. Once a sensor is created this value cannot be changed. It is shown for reference purposes only. If you need to change this, please add the sensor anew.

Unit String

Enter a string describing the unit of the returned values. This is for display purposes only. Please enter a string.

Multiplication

If you want to multiply the received data with a certain value, enter the quotient here. Please enter an integer or float value, or leave the field empty.

Division

If you want to divide the received data by a certain value, enter the divisor here. Please enter an integer or float value, or leave the field empty.

Sensor Display

Primary Channel

Select a channel from the list to define it as the primary channel. In the device tree, the last value of the primary channel will always be displayed underneath the sensor's name. The available options depend on what channels are available for this sensor. Note: You can set another primary channel later by clicking on the pin symbol of a channel in the sensor's overview tab.

Chart Type

Define how different channels will be shown for this sensor.

  • Show channels independently (default): Show an own graph for each channel.
  • Stack channels on top of each other: Stack channels on top of each other to create a multi-channel graph. This will generate an easy-to-read graph which visualizes the different components of your total traffic. Note: This option cannot be used in combination with manual Vertical Axis Scaling (available in the Sensor Channels Settings settings).

Stack Unit

This setting is only available if stacked graphs are selected above. Choose a unit from the list. All channels with this unit will be stacked on top of each other. By default, you cannot exclude single channels from stacking, if they use the selected unit. However, there is an advanced procedure to do so.

Inherited Settings

By default, all following settings are inherited from objects higher in the hierarchy and should be changed there, if necessary. Often, best practice is to change them centrally in the Root group's settings. To change a setting for this object, disable inheritance by clicking on the check mark symbol in front of the respective setting name. You will then see the options described below.

Scanning Interval

Scanning Interval

The scanning interval determines the time the sensor waits between two scans. Select a scanning interval (seconds, minutes, or hours) from the list. You can change the available intervals in the system administration.

Schedules, Dependencies, and Maintenance Window

Note: Inheritance for schedules, dependencies, and maintenance windows cannot be interrupted; the according settings from the parent objects will always be active. However, you can define additional settings here. They will be active in parallel to the parent objects' settings.

Schedule

Select a schedule from the list. Schedules can be used to monitor for a certain time span (days, hours) throughout the week. With the period list option it is also possible to pause monitoring for a specific time span. You can create new schedules and edit existing ones in the account settings. Note: Schedules are generally inherited. New schedules will be added to existing ones, so all schedules are active.

Maintenance Window

Specify if you want to set-up a one-time maintenance window. During a maintenance window this object and all child objects will not be monitored. They will enter a paused state then. Choose between:

  • Not set (monitor continuously): No maintenance window will be set.
  • Set up a one-time maintenance window: Pause monitoring within a maintenance window.

Maintenance Begins At

This field is only visible if maintenance window is enabled above. Use the date time picker to enter the start date and time of the maintenance window.

Maintenance End At

This field is only visible if maintenance window is enabled above. Use the date time picker to enter the end date and time of the maintenance window.

Dependency Type

Define a dependency type. Dependencies can be used to pause monitoring for an object depending on the status of another. You can choose between:

  • Use parent: Pause the current sensor if the device it is created on is in a Down status, or if it is paused by another dependency.
  • Select object: Pause the current sensor if the device it is created on is in an Down status, or if it is paused by another dependency. Additionally, pause the current sensor if a specific other object in the device tree is in a Down status, or if it is paused by another dependency. Select below.
  • Master object for parent: Make this sensor the master object for its parent device. The sensor will influence the behavior of the device it is created on: If the sensor is in a Down status, the device will be paused. For example, it is a good idea to make a Ping sensor the master object for its parent device to pause monitoring for all other sensors on the device in case the device cannot even be pinged. Additionally, the sensor will be paused if the parent group of its parent device is in a Down status, or if it is paused by another dependency.

Note: Testing your dependencies is easy! Simply choose Simulate Error Status from the context menu of an object that other objects depend on. A few seconds later all dependent objects should be paused.

Dependency

This field is only visible if the select object option is enabled above. Click on the reading-glass symbol and use the object selector to choose an object on which the current sensor will be dependent on.

Delay (Seconds)

Define a time span. After the master object for this dependency comes back to an Up status, monitoring of the depending objects will be additionally delayed by the defined time span. This can help avoid false alarms, for example, after a server restart, by giving systems more time for all services to start up. Please enter an integer value in seconds. Note: This setting is not available if you choose this sensor to be the Master object for parent. In this case, please define delays in the parent Device Settings or the superior Group Settings.

Access Rights

User Group Access

Define which user group(s) will have access to the object you're editing. A table with user groups and right is shown; it contains all user groups from your setup. For each user group you can choose from the following access rights:

  • Inherited: Use the settings of the parent object.
  • None: Users in this group cannot see or edit the object. The object does not show up in lists and in the device tree. Exception: If a child object is visible to the user, the object is visible in the device tree, though not accessible.
  • Read: Users in this group can see the object and review its monitoring results.
  • Write: Users in this group can see the object, review its monitoring results, and edit the object's settings. They cannot edit access rights settings.
  • Full: Users in this group can see the object, review its monitoring results, edit the object's settings, and edit access rights settings.

You can create new user groups in the System Administration—User Groups settings. To automatically set all objects further down in the hierarchy to inherit this object's access rights, set a check mark for the Revert children's access rights to inherited option.

For more details about access rights, please see section User Access Rights.

Edit Sensor Channels

In order to change display settings, spike filter, and limits, please switch to the sensor's Overview tab and click on the gear icon of a specific channel. For detailed information, please see Sensor Channels Settings section.

Notifications

Click on the Notifications tab to change notification triggers. For detailed information, please see Sensor Notifications Settings section.

Others

For more general information about settings, please see Object Settings section.

Sensor Settings Overview

For information about sensor settings, please see the following sections:
