Vunetrix Manual: Reports

Reports are used to analyze historic monitoring results over a specified time such as one or more days, one month, or an entire year. You can create reports for all, or only for certain sensors.

Introduction

Vunetrix includes a powerful reporting engine for ad-hoc, as well as scheduled report generation in HTML and PDF format. Thus, reports can be run on demand or on a regular basis (for example, once a day). You can create reports for one single sensor, or you choose a range of sensors you want to create a report for. The content and layout of the report is controlled by the report template of your choice and is the same for all sensors in a report.

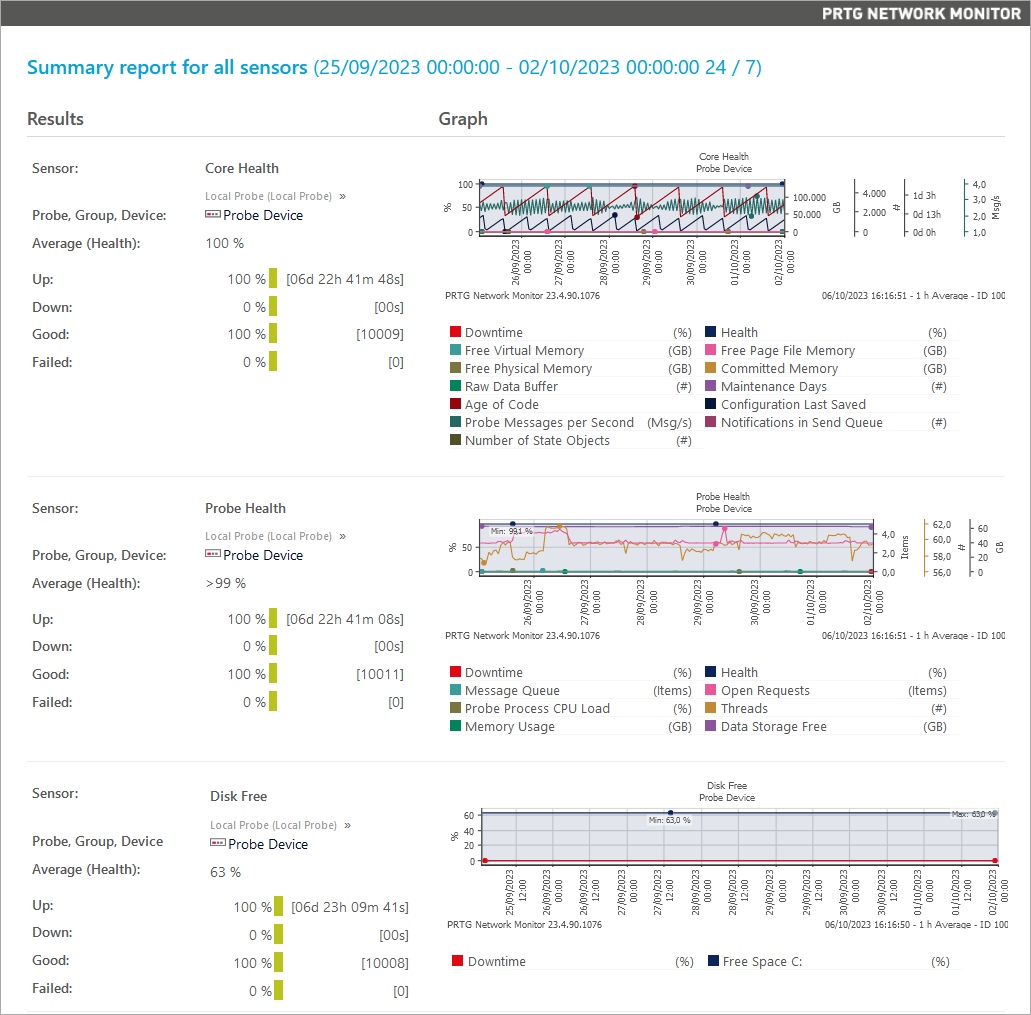

Report Sample

Report Sample

The sample report above shows a report data for devices on a local probe. You can see graphs for the preceding week, plus data tables with numeric results.

Start Reports

Click the Reports entry from the main menu to view or add reports of your monitoring data. Hover to show other menu items. Choose between:

  • All
    Calls the Reports feature where you can view or add reports of your monitoring data.
  • Add Report
    Lets you directly add a new report.
  • Select Report ›
    Show existing reports. Hover to show other menu items. Follow the menu path (it is specific to your setup) to select a report.

Reports Overview

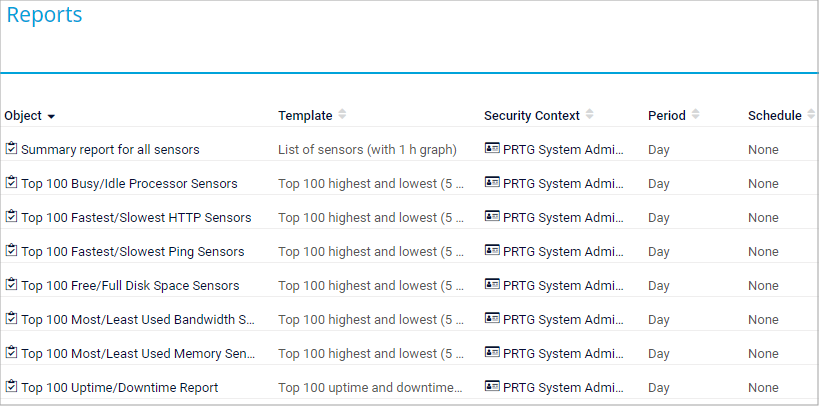

List of Reports

List of Reports

In the All view, you see a list of all existing reports. Every line shows information about one report:

  • Period: The time span covered by the report.
  • Schedule: Shows if a schedule is set to regularly execute the report automatically.
  • Email: If a schedule and an email address is set in the report settings, this shows the email address the report is automatically sent to.
  • Status: Shows the current status of the report.
  • Last Run: If a schedule is set in the report settings, this shows when the report was run the last time.
  • Next Run: If a schedule is set in the report settings, this shows when the report will be run the next time.

Using the buttons at the end of a line, you can Edit, Clone, and Delete the respective report.

Please see also Working with Table Lists. Additionally, there is multi-edit available. This enables you to change properties of several objects at a time. For more details, please see Multi-Edit Lists section.

Click on the Add Report button to add a new report, or click on the name of an existing report to view and edit its settings. You can also run a pre-configured report easily by clicking on its name and then using the options in the Run Now tab. For both options, please see Reports Step By Step section.

Working With Reports

For detailed information on how to create, edit, and schedule reports, please see the following sections:

Automatic Averaging

For performance reasons, Vunetrix automatically averages monitoring data when calculating data for large time spans. Data is then averaged regardless of the selected average interval.

Time Span in Report

Minimum Level of Detail (Average Interval)

Up to 40 days

Any

40 to 500 days

60 minutes/1 hour or larger

A report for a time span of more than 500 days is not possible. If you try to set a larger time span, it will be reduced to 365 days automatically.
