Vunetrix Manual: Port Sensor

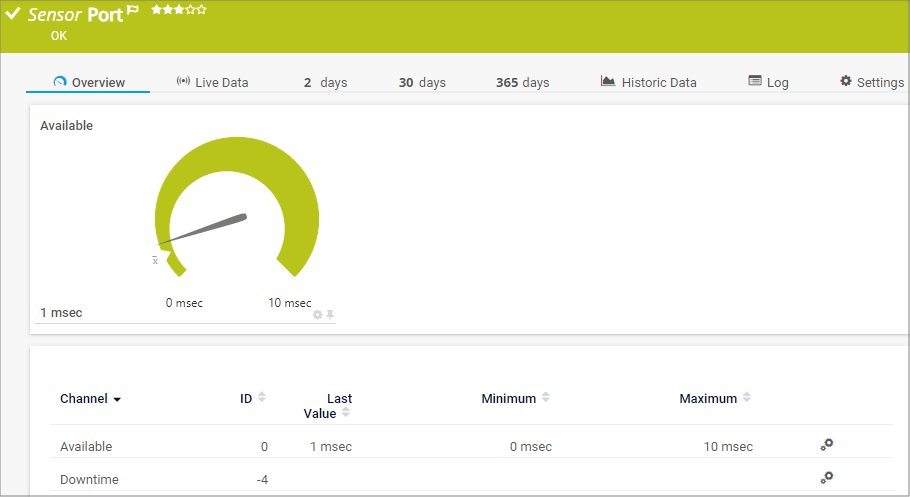

The Port sensor monitors a network service by connecting to its port. It tries to connect to the specified TCP/IP port number of a device and waits for the request to be accepted. Depending on your settings, it can alert you either when the monitored port is open, or when it is closed.

Add Sensor

The Add Sensor dialog appears when adding a new sensor on a device manually. It only shows the setting fields that are imperative for creating the sensor. Therefore, you will not see all setting fields in this dialog. You can change all settings in the sensor's Settings tab later.

Sensor Settings

On the sensor's details page, click on the Settings tab to change settings.

Note: If not set explicitly in a sensor's settings, it will connect to the IP Address or DNS Name defined in the settings of the parent device the sensor is created on.

Basic Sensor Settings

Sensor Name

Enter a meaningful name to identify the sensor. The name will be shown by default in the device tree and in all alarms.

Tags

Enter one or more tags, separated by space or comma. You can use tags to group sensors and use tag-filtered views later on. Tags are not case sensitive. We recommend using the default value. You can add additional tags to it, if you like. Other tags are automatically inherited from objects further up in the device tree. Those are not visible here.

Priority

Select a priority for the sensor. This setting determines where the sensor will be placed in sensor lists. Top priority will be at the top of a list. You can choose from one star (low priority) to five stars (top priority).

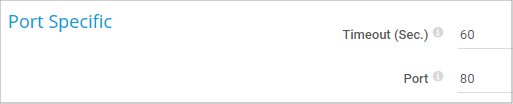

Port Specific

Timeout (sec.)

Enter a timeout in seconds for the port connect. If the reply takes longer than this value the request is aborted and an error message is triggered.

Port

Enter the number of the port the sensor will try to connect to. Please enter an integer value.

SSL (Secure Sockets Layer)

Specify if an encryption will be used for the connection. Choose between:

  • Don't use SSL (recommended)
  • Use SSL

SSL-Method

This field is only visible if security is enabled above. Select the SSL method that will be used when connecting to the server. We recommend using the default value. Only if you experience connection problems, try another setting. Choose between:

  • SSL V2
  • SSL V2 or V3
  • SSL V3
  • TLS V1

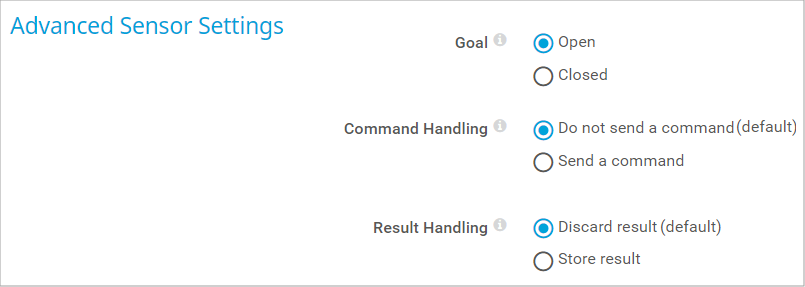

Advanced Sensor Settings

Goal

Define how the sensor will report on the port defined above. Choose between:

  • Open: The sensor will return a green OK status if the port is open, and show a red Down status if the port is closed.
  • Closed: The sensor will return a green OK status if the port is closed, and show a red Down status if the port is open.

Command

Define whether a command will be sent after the port is opened. Choose between:

  • Don't send command: Only check if a connection to the port is possible.
  • Send command: Open a Telnet session to the respective port and send the command. Note: You cannot use this option if the target machine is a webserver.

Command

This field is only visible if sending a command is enabled above. Enter a command that will be sent in Telnet session to the respective port. You cannot use line breaks, but a simple Telnet command in a single line only. Please enter a string.

Response

Define if the response received will be further processed. Choose between:

  • Ignore response: Do not check the response.
  • Check response code (integer): Check if the response matches a defined response code. Define below.
  • Check response text: Check if the response matches a defined response text. Define below.

Allowed Code

This field is only visible if response code check is enabled above. Enter a code that must be returned. If it does not match the sensor will be set to a Down status. Please enter an integer value.

Check For Existing Keywords (Positive)

This setting is only visible if text processing is activated above. Check if a certain keyword is part of the received value. If there is no match, the sensor will show a "Down" status.

  • Disable: Do not check for positive keywords.
  • Enable keyword check (positive): Check if a certain keyword exists in the received value. Define below.

Text Must Include

This setting is only visible if keyword check is activated above. Enter a search string that must be contained in the returned value.

For Keyword Search Use

Define the method you want to provide the search string with. Choose between:

  • Plain Text: Search for a simple string.
  • Regular Expression: Search using a regular expression. For more details, see Regular Expressions section.

Check For Existing Keywords (Negative)

This setting is only visible if text processing is activated above. Check if a certain keyword is not part of the received value. If there is a match, the sensor will show a "Down" status.

  • Disable: Do not check for negative keywords.
  • Enable keyword check (negative): Check if a certain keyword does not exist in the received value. Define below.

Text Must Not Include

This setting is only visible if keyword check is activated above. Enter a search string that must not be contained in the returned value.

For Keyword Search Use

Define the method you want to provide the search string with. Choose between:

  • Plain Text: Search for a simple string.
  • Regular Expression: Search using a regular expression. For more details, see Regular Expressions section.

Sensor Display

Primary Channel

Select a channel from the list to define it as the primary channel. In the device tree, the last value of the primary channel will always be displayed underneath the sensor's name. The available options depend on what channels are available for this sensor. Note: You can set another primary channel later by clicking on the pin symbol of a channel in the sensor's overview tab.

Chart Type

Define how different channels will be shown for this sensor.

  • Show channels independently (default): Show an own graph for each channel.
  • Stack channels on top of each other: Stack channels on top of each other to create a multi-channel graph. This will generate an easy-to-read graph which visualizes the different components of your total traffic. Note: This option cannot be used in combination with manual Vertical Axis Scaling (available in the Sensor Channels Settings settings).

Stack Unit

This setting is only available if stacked graphs are selected above. Choose a unit from the list. All channels with this unit will be stacked on top of each other. By default, you cannot exclude single channels from stacking, if they use the selected unit. However, there is an advanced procedure to do so.

Inherited Settings

By default, all following settings are inherited from objects higher in the hierarchy and should be changed there, if necessary. Often, best practice is to change them centrally in the Root group's settings. To change a setting for this object, disable inheritance by clicking on the check mark symbol in front of the respective setting name. You will then see the options described below.

Scanning Interval

Scanning Interval

The scanning interval determines the time the sensor waits between two scans. Select a scanning interval (seconds, minutes, or hours) from the list. You can change the available intervals in the system administration.

Schedules, Dependencies, and Maintenance Window

Note: Inheritance for schedules, dependencies, and maintenance windows cannot be interrupted; the according settings from the parent objects will always be active. However, you can define additional settings here. They will be active in parallel to the parent objects' settings.

Schedule

Select a schedule from the list. Schedules can be used to monitor for a certain time span (days, hours) throughout the week. With the period list option it is also possible to pause monitoring for a specific time span. You can create new schedules and edit existing ones in the account settings. Note: Schedules are generally inherited. New schedules will be added to existing ones, so all schedules are active.

Maintenance Window

Specify if you want to set-up a one-time maintenance window. During a maintenance window this object and all child objects will not be monitored. They will enter a paused state then. Choose between:

  • Not set (monitor continuously): No maintenance window will be set.
  • Set up a one-time maintenance window: Pause monitoring within a maintenance window.

Maintenance Begins At

This field is only visible if maintenance window is enabled above. Use the date time picker to enter the start date and time of the maintenance window.

Maintenance End At

This field is only visible if maintenance window is enabled above. Use the date time picker to enter the end date and time of the maintenance window.

Dependency Type

Define a dependency type. Dependencies can be used to pause monitoring for an object depending on the status of another. You can choose between:

  • Use parent: Pause the current sensor if the device it is created on is in a Down status, or if it is paused by another dependency.
  • Select object: Pause the current sensor if the device it is created on is in an Down status, or if it is paused by another dependency. Additionally, pause the current sensor if a specific other object in the device tree is in a Down status, or if it is paused by another dependency. Select below.
  • Master object for parent: Make this sensor the master object for its parent device. The sensor will influence the behavior of the device it is created on: If the sensor is in a Down status, the device will be paused. For example, it is a good idea to make a Ping sensor the master object for its parent device to pause monitoring for all other sensors on the device in case the device cannot even be pinged. Additionally, the sensor will be paused if the parent group of its parent device is in a Down status, or if it is paused by another dependency.

Note: Testing your dependencies is easy! Simply choose Simulate Error Status from the context menu of an object that other objects depend on. A few seconds later all dependent objects should be paused.

Dependency

This field is only visible if the select object option is enabled above. Click on the reading-glass symbol and use the object selector to choose an object on which the current sensor will be dependent on.

Delay (Seconds)

Define a time span. After the master object for this dependency comes back to an Up status, monitoring of the depending objects will be additionally delayed by the defined time span. This can help avoid false alarms, for example, after a server restart, by giving systems more time for all services to start up. Please enter an integer value in seconds. Note: This setting is not available if you choose this sensor to be the Master object for parent. In this case, please define delays in the parent Device Settings or the superior Group Settings.

Access Rights

User Group Access

Define which user group(s) will have access to the object you're editing. A table with user groups and right is shown; it contains all user groups from your setup. For each user group you can choose from the following access rights:

  • Inherited: Use the settings of the parent object.
  • None: Users in this group cannot see or edit the object. The object does not show up in lists and in the device tree. Exception: If a child object is visible to the user, the object is visible in the device tree, though not accessible.
  • Read: Users in this group can see the object and review its monitoring results.
  • Write: Users in this group can see the object, review its monitoring results, and edit the object's settings. They cannot edit access rights settings.
  • Full: Users in this group can see the object, review its monitoring results, edit the object's settings, and edit access rights settings.

You can create new user groups in the System Administration—User Groups settings. To automatically set all objects further down in the hierarchy to inherit this object's access rights, set a check mark for the Revert children's access rights to inherited option.

For more details about access rights, please see section User Access Rights.

Edit Sensor Channels

In order to change display settings, spike filter, and limits, please switch to the sensor's Overview tab and click on the gear icon of a specific channel. For detailed information, please see Sensor Channels Settings section.

Notifications

Click on the Notifications tab to change notification triggers. For detailed information, please see Sensor Notifications Settings section.

Others

For more general information about settings, please see Object Settings section.

Sensor Settings Overview

For information about sensor settings, please see the following sections:
