Vunetrix Manual: Maps

With Vunetrix's Maps feature (some people might call this 'dashboards') you can create web pages with up-to-the-minute monitoring status information in a customizable layout. Using this unique concept, you can also make your overview pages of live data publicly available, if you like.

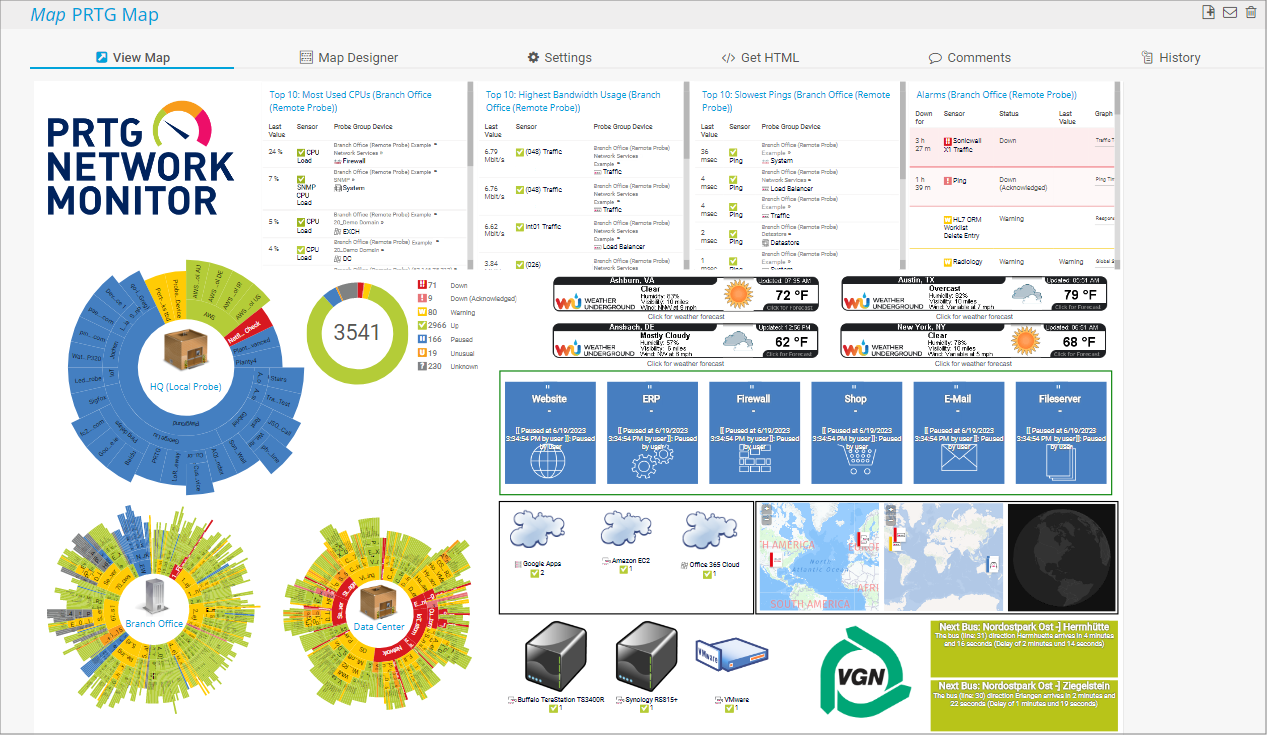

Example of a Vunetrix Map

In this section:

• Introduction
• Start Maps
• Maps Overview
• Maps Rotation
• Working with Maps


Introduction

There are countless possibilities for the implementation of maps. For example, this feature can be used to:

• Create network maps with status icons for each device on the map.
• Create quick views of your network that can be shown on network operations center screens.
• Create a quick network overview for publishing on the Intranet, allowing at-a-glance information for management of other employees.
• Create a custom view of the most important sensors in your monitoring setup.
• Create Top 10 lists of the sensors of a specific group or device.


Technically, a map is a usual HTML web page. You can build a schema of your network by choosing from hundreds of device icons and connect them with lines. A map can consist of the following elements:

• A set of map items, which can include device icons, sensor status icons, graphs, data tables, lists of sensors, connection lines, geographical maps, or custom HTML code.
• An optional background image (a JPG, PNG, or GIF file, for example, your company logo or a graphical view of your network).

You can also specify the size of the map. Using the AJAX-based map editor, you can place the items anywhere on the map and you can also change their size. Each map has a unique URL which can be used to link to the map. Users who want to access the map either need an account in your Vunetrix installation, or can access a public URL of the map if you allow the Public Access feature. Public maps contain a unique Map ID access key in the URL to block unwanted visitors.

Start Maps

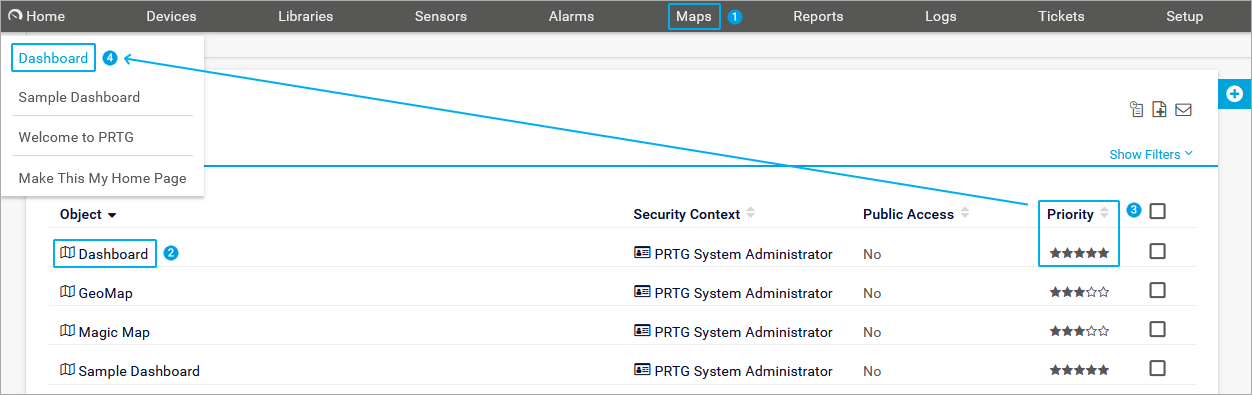

Click the Maps entry from the main menu to view or add custom views of your network's status and monitoring data. Hover to show other menu items. Choose between:

• All
  Calls the Maps feature where you can view or add custom views of your network's status and monitoring data.
• Add Map
  Lets you directly add a new map.
• Select Map ›
  Show existing maps. Hover to show other menu items. Follow the menu path (it is specific to your setup) to select a map.

Maps Overview

In the All view, you see a list of all existing maps. Using the links next to a map name, you can perform the following actions.

• Click on the name of a map to view it.
• Click on the Edit button to adjust the settings of this map.
• Click on the Clone button to create an exact copy of this map. As soon as you click, the map is cloned and the cloned map's settings are shown.
• Click on the Delete button to remove this map.
• Click on the Add Map button to add a new map.

Please see also Working with Table Lists. Additionally, there is multi-edit available. This enables you to change properties of several objects at a time. For more details, please see Multi-Edit Lists section.

Map Rotation

To show several maps in a rotation, mark the desired maps using multi-edit and then select Map Rotation from the multi-edit menu. You will be redirected to a page where the rotation is shown. This requires login credentials for Vunetrix.

It is also possible to set up a public map rotation without login: Allow public access in the settings of the desired maps. Use the corresponding map IDs with its secret keys to build a URL that calls a public map rotation. The URL must have this format: the address of your Vunetrix server, followed by /public/mapshow.htm?ids=. Then list the IDs of the desired maps, each separated by a comma. Each map ID has to be connected with its secret key using a colon: http://yourprtgserver/public/mapshow.htm?ids=mapid1:secretkey1,mapid2:secretkey2,mapid3:secretkey3

While a map rotation is shown, you can change the refresh interval any time when hovering the arrows symbol in the lower right corner. Choose between 10, 30, or 60 seconds, 10 minutes or Refresh now.

Working with Maps

For detailed information on how to create and edit maps, and to learn how to make them accessible to others, please see the following sections.

• Maps Step By Step
• Maps Designer
• Maps Other Settings
