Vunetrix Manual: IPFIX (Custom) Sensor

The IPFIX (Custom) sensor receives traffic data from an IPFIX (Internet Protocol Flow Information Export)  compatible device and shows the traffic by type. In this custom sensor, you can define your own channel definitions to divide traffic into different channels. Please make sure your device supports IPFIX when using this sensor.

Note: In order for this sensor to work, you have to enable IPFIX export on the device. The device must send the flow data stream to the IP address of the Vunetrix probe system on which the sensor is set up (either a local or remote probe). This sensor type cannot be used in cluster mode. You can set it up on a local probe or remote probe only, not on a cluster probe.

For a general introduction to the technology behind flow monitoring, please see Monitoring Bandwidth via Flows section.

Limited to 50 Sensor Channels

Vunetrix does not support more than 50 sensor channels officially. Depending on the data used with this sensor type, you might exceed the maximum number of supported sensor channels. In this case, Vunetrix will try to display all sensor channels. However, please be aware that you will experience limited usability and performance.

Add Sensor

The Add Sensor dialog appears when adding a new sensor on a device manually. It only shows the setting fields that are imperative for creating the sensor. Therefore, you will not see all setting fields in this dialog. You can change all settings in the sensor's Settings tab later.

Sensor Settings

On the sensor's details page, click on the Settings tab to change settings.

Note: If not set explicitly in a sensor's settings, it will connect to the IP Address or DNS Name defined in the settings of the parent device the sensor is created on.

Basic Sensor Settings

Sensor Name

Enter a meaningful name to identify the sensor. The name will be shown by default in the device tree and in all alarms.

Tags

Enter one or more tags, separated by space or comma. You can use tags to group sensors and use tag-filtered views later on. Tags are not case sensitive. We recommend using the default value. You can add additional tags to it, if you like. Other tags are automatically inherited from objects further up in the device tree. Those are not visible here.

Priority

Select a priority for the sensor. This setting determines where the sensor will be placed in sensor lists. Top priority will be at the top of a list. You can choose from one star (low priority) to five stars (top priority).

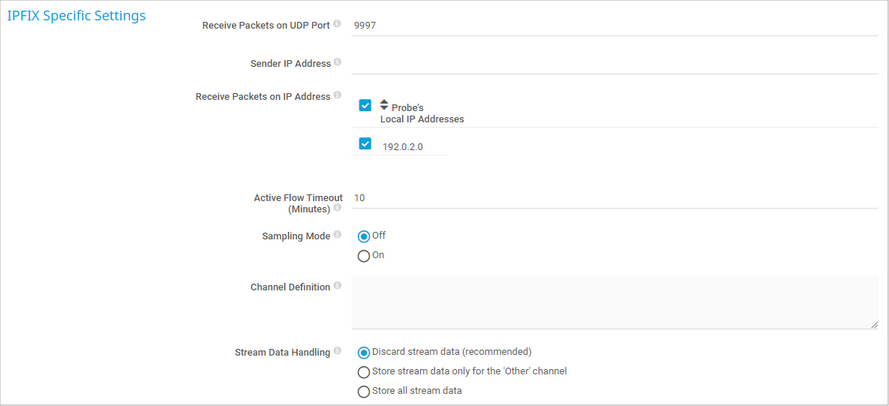

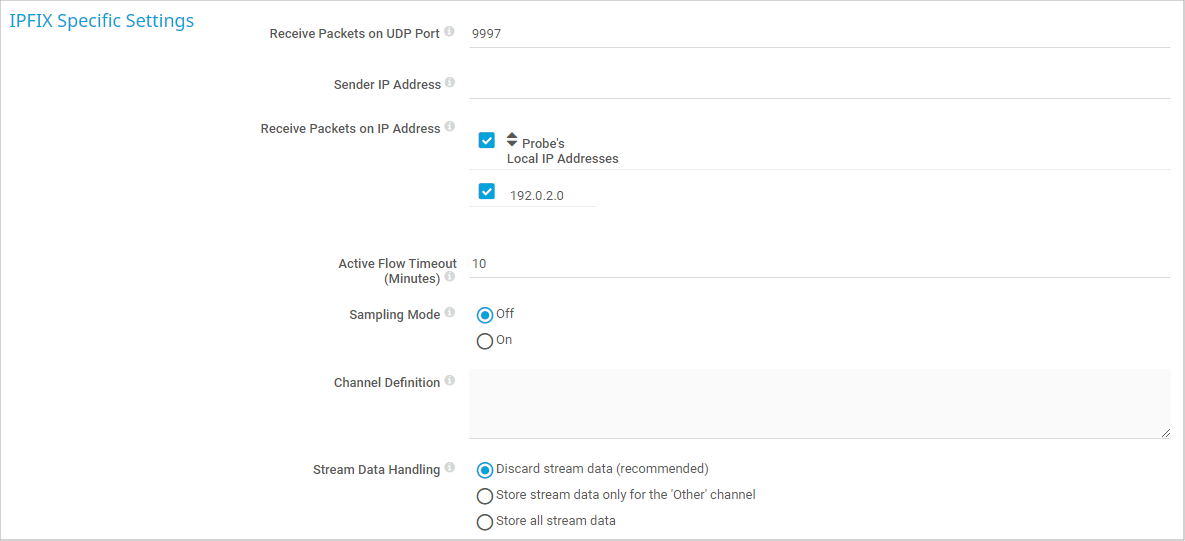

IPFIX Specific Settings

Receive IPFIX Packets on UDP Port

Enter the UDP port number on which the flow packets are received. It must match the one configured in the IPFIX export options of your hardware router device. Please enter an integer value.

Sender IP

Enter the IP address of the sending device you want to receive the IPFIX data from. Enter an IP address to receive data from a specific device only, or leave the field empty to receive data from any device on the specified port.

Receive IPFIX Packets on IP

Select the IP address(es) on which Vunetrix listens to IPFIX packets. The list of IP addresses shown here is specific to your setup. To select an IP address, add a check mark in front of the respective line. The IP address selected here must match the one configured in the IPFIX export options of your hardware router device.

Active Flow Timeout (Minutes)

Enter a time span in minutes after which new flow data must be received. If the timeout is reached and no new data is received, the sensor may switch to an Unknown status. Please enter an integer value. We recommend setting this one minute longer than the respective timeout configured in your hardware router device. Note: If you set this value too low, flow information might get lost!

Sampling Mode

Define if you want to use the sampling mode. This setting must accord to the setting in the flow exporter. Choose between:

  • Off: The standard flow will be used.
  • On: Switch into sampling mode and specify the sampling rate below.

Sampling Rate

This field is only visible when sampling mode is enabled above. Enter a number that matches the sampling rate in your device. If the number is different, monitoring results will be incorrect. Please enter an integer value.

Channel Definition

Please enter a channel definition to divide the traffic into different channels. Write each definition in one line. For detailed information, please see Channel Definitions for xFlow and Packet Sniffer Sensors section. All traffic for which no channel is defined will be accounted to the default channel named Other. Note: Extensive use of many filters can cause load problems on your probe system. We recommend defining specific, well-chosen filters for the data you really want to analyze.

Log Stream Data to Disk (for Debugging)

Define if the probe will write a log file of the stream and packet data to the data folder (see Data Storage). Choose between:

  • None (recommended): Do not write additional log files. Recommended for normal use cases.
  • Only for the 'Other' channel: Only write log files of data that is not filtered otherwise and therefore accounted to the default Other channel.
  • All stream data: Write log files for all data received.

Note: Use with caution! When enabled, huge data files can be created. Please use for a short time and for debugging purposes only.

Sensor Display

Primary Channel

Select a channel from the list to define it as the primary channel. In the device tree, the last value of the primary channel will always be displayed underneath the sensor's name. The available options depend on what channels are available for this sensor. Note: You can set another primary channel later by clicking on the pin symbol of a channel in the sensor's overview tab.

Chart Type

Define how different channels will be shown for this sensor.

  • Show channels independently (default): Show an own graph for each channel.
  • Stack channels on top of each other: Stack channels on top of each other to create a multi-channel graph. This will generate an easy-to-read graph which visualizes the different components of your total traffic. Note: This option cannot be used in combination with manual Vertical Axis Scaling (available in the Sensor Channels Settings settings).

Stack Unit

This setting is only available if stacked graphs are selected above. Choose a unit from the list. All channels with this unit will be stacked on top of each other. By default, you cannot exclude single channels from stacking, if they use the selected unit. However, there is an advanced procedure to do so.

Filtering

Include Filter

Define if you want to filter any traffic. If you leave this field empty, all traffic will be included. To include specific traffic only, define filters using a special syntax. For detailed information, please see Filter Rules for xFlow, IPFIX, and Packet Sniffer Sensors section.

Exclude Filter

First, the filters defined in the Include Filter field are considered. From this subset, you can explicitly exclude traffic, using the same syntax. For detailed information, please see Filter Rules for xFlow, IPFIX, and Packet Sniffer Sensors section.

Primary Toplist

Primary Toplist

Define which will be your primary toplist. It will be shown in maps when adding a toplist object. Choose from:

  • Top Talkers
  • Top Connections
  • Top Protocols
  • [Any custom toplists you have added]

Inherited Settings

By default, all following settings are inherited from objects higher in the hierarchy and should be changed there, if necessary. Often, best practice is to change them centrally in the Root group's settings. To change a setting for this object, disable inheritance by clicking on the check mark symbol in front of the respective setting name. You will then see the options described below.

Scanning Interval

Scanning Interval

The scanning interval determines the time the sensor waits between two scans. Select a scanning interval (seconds, minutes, or hours) from the list. You can change the available intervals in the system administration.

Schedules, Dependencies, and Maintenance Window

Note: Inheritance for schedules, dependencies, and maintenance windows cannot be interrupted; the according settings from the parent objects will always be active. However, you can define additional settings here. They will be active in parallel to the parent objects' settings.

Schedule

Select a schedule from the list. Schedules can be used to monitor for a certain time span (days, hours) throughout the week. With the period list option it is also possible to pause monitoring for a specific time span. You can create new schedules and edit existing ones in the account settings. Note: Schedules are generally inherited. New schedules will be added to existing ones, so all schedules are active.

Maintenance Window

Specify if you want to set-up a one-time maintenance window. During a maintenance window this object and all child objects will not be monitored. They will enter a paused state then. Choose between:

  • Not set (monitor continuously): No maintenance window will be set.
  • Set up a one-time maintenance window: Pause monitoring within a maintenance window.

Maintenance Begins At

This field is only visible if maintenance window is enabled above. Use the date time picker to enter the start date and time of the maintenance window.

Maintenance End At

This field is only visible if maintenance window is enabled above. Use the date time picker to enter the end date and time of the maintenance window.

Dependency Type

Define a dependency type. Dependencies can be used to pause monitoring for an object depending on the status of another. You can choose between:

  • Use parent: Pause the current sensor if the device it is created on is in a Down status, or if it is paused by another dependency.
  • Select object: Pause the current sensor if the device it is created on is in an Down status, or if it is paused by another dependency. Additionally, pause the current sensor if a specific other object in the device tree is in a Down status, or if it is paused by another dependency. Select below.
  • Master object for parent: Make this sensor the master object for its parent device. The sensor will influence the behavior of the device it is created on: If the sensor is in a Down status, the device will be paused. For example, it is a good idea to make a Ping sensor the master object for its parent device to pause monitoring for all other sensors on the device in case the device cannot even be pinged. Additionally, the sensor will be paused if the parent group of its parent device is in a Down status, or if it is paused by another dependency.

Note: Testing your dependencies is easy! Simply choose Simulate Error Status from the context menu of an object that other objects depend on. A few seconds later all dependent objects should be paused.

Dependency

This field is only visible if the select object option is enabled above. Click on the reading-glass symbol and use the object selector to choose an object on which the current sensor will be dependent on.

Delay (Seconds)

Define a time span. After the master object for this dependency comes back to an Up status, monitoring of the depending objects will be additionally delayed by the defined time span. This can help avoid false alarms, for example, after a server restart, by giving systems more time for all services to start up. Please enter an integer value in seconds. Note: This setting is not available if you choose this sensor to be the Master object for parent. In this case, please define delays in the parent Device Settings or the superior Group Settings.

Access Rights

User Group Access

Define which user group(s) will have access to the object you're editing. A table with user groups and right is shown; it contains all user groups from your setup. For each user group you can choose from the following access rights:

  • Inherited: Use the settings of the parent object.
  • None: Users in this group cannot see or edit the object. The object does not show up in lists and in the device tree. Exception: If a child object is visible to the user, the object is visible in the device tree, though not accessible.
  • Read: Users in this group can see the object and review its monitoring results.
  • Write: Users in this group can see the object, review its monitoring results, and edit the object's settings. They cannot edit access rights settings.
  • Full: Users in this group can see the object, review its monitoring results, edit the object's settings, and edit access rights settings.

You can create new user groups in the System Administration—User Groups settings. To automatically set all objects further down in the hierarchy to inherit this object's access rights, set a check mark for the Revert children's access rights to inherited option.

For more details about access rights, please see section User Access Rights.

Channel Unit Configuration

Channel Unit Types

For each type of sensor channel, define the unit in which data is displayed. If defined on probe, group, or device level, these settings can be inherited to all sensors underneath. You can set units for the following channel types (if available):

  • Bandwidth
  • Memory
  • Disk
  • File
  • Custom

Note: Custom channel types can be set on sensor level only.

Toplists

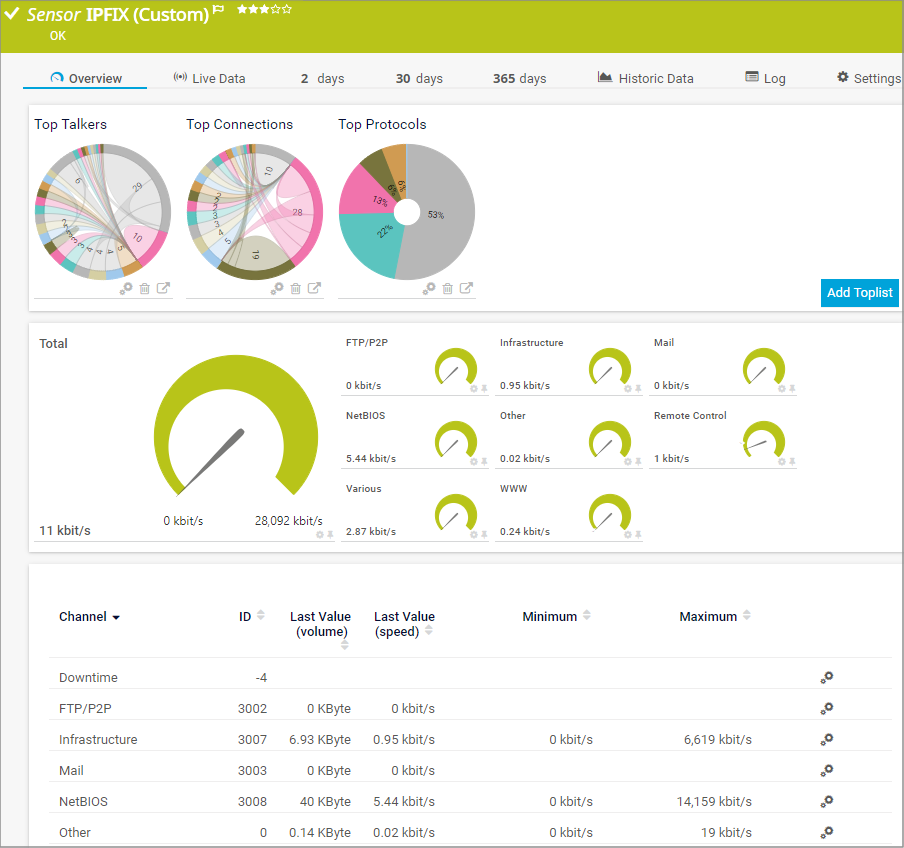

For all flow and packet sniffer sensors there are Toplists available on the Overview tab of a sensor's detail page. Using toplists, you can review traffic data of small time periods in great detail. For more information, please see Toplists section.

Edit Sensor Channels

In order to change display settings, spike filter, and limits, please switch to the sensor's Overview tab and click on the gear icon of a specific channel. For detailed information, please see Sensor Channels Settings section.

Notifications

Click on the Notifications tab to change notification triggers. For detailed information, please see Sensor Notifications Settings section.

Others

For more general information about settings, please see Object Settings section.
